High Quality medical-grade red light therapy devices Supplier
Quality is at the heart of every red light therapy devices production at MKD. We are committed to providing our customers with the highest standard of medical-grade red light therapy devices
Strict Control of medical grade red light therapy devices Production Lines
We have subdivided quality control into several stages to realize all-round control from raw materials to finished products.
Raw Material Inspection
We understand that high-quality red light therapy equipment begins with rigorous raw material standards. That’s why our company has established a comprehensive incoming-materials inspection system. We conduct chemical composition verification, mechanical performance testing, visual appearance checks, and functional aging assessments on all critical components (such as light sources and electronic modules). At the same time, we maintain close collaboration with our suppliers to ensure full traceability of material batches, supplier qualifications, test reports, and warehousing records. Through this end-to-end traceability—from materials to production to shipment—we ensure that every device meets design specifications for treatment wavelength, output power, thermal-dissipation efficiency, and safety performance, delivering red light therapy device you can trust.
Production Process Quality Control
We implement comprehensive quality control to ensure every red light therapy device the highest standards of safety and performance. Our intelligent, automated production line continuously monitors key processes such as temperature regulation, seal integrity, heat-dissipation circuits, and electronic connections. By analysing parameters like temperature deviation, LED output variation, cooling flow rate, and power efficiency in real time, the system swiftly detects and corrects any anomalies to maintain optimal operating conditions. Rigorous in-process inspections and final functional testing further enhance product consistency, minimise human error, and guarantee that each red-light-therapy device is fully verified and compliant with international safety and performance standards before leaving the factory.
100% Comprehensive Inspection Before Delivery
Prior to shipment, every unit undergoes a thorough quality inspection to ensure optimal performance and reliability. Each device is meticulously evaluated under simulated working conditions for treatment wavelength accuracy, output stability, heat-dissipation efficiency, and electrical safety. The housing finish, sealing quality, mechanical structure, and component mounting are also carefully examined to rule out any potential failure or malfunction during use. Only after passing multiple rounds of functional performance tests, aging evaluations, and safety verifications is the device approved for packaging and dispatch. This rigorous pre-shipment inspection process guarantees that every red-light therapy unit meets our highest standards of quality, safety and durability.
Does Your Business Need Durable and Affordable Red light therapy devices?
Rigorous Testing Process
We combines advanced craftsmanship, strict quality control, mass production and modern facilities to ensure that each product has high precision, durability and global applicability.
1. Incoming Materials & Visual Inspection
Prior to entering the production line, all key raw materials (such as LED light modules, heat-sink structures, plastic housings, and power drive units) are sampled by our QC department based on batch numbers. The housing must be flat, free of cracks or significant color variation, the printed labels clear and firmly affixed. The LED modules’ solder joints must show no cold-joints or looseness, and the power connectors must be securely attached. This step ensures that the product begins with a strong quality foundation from the very source.

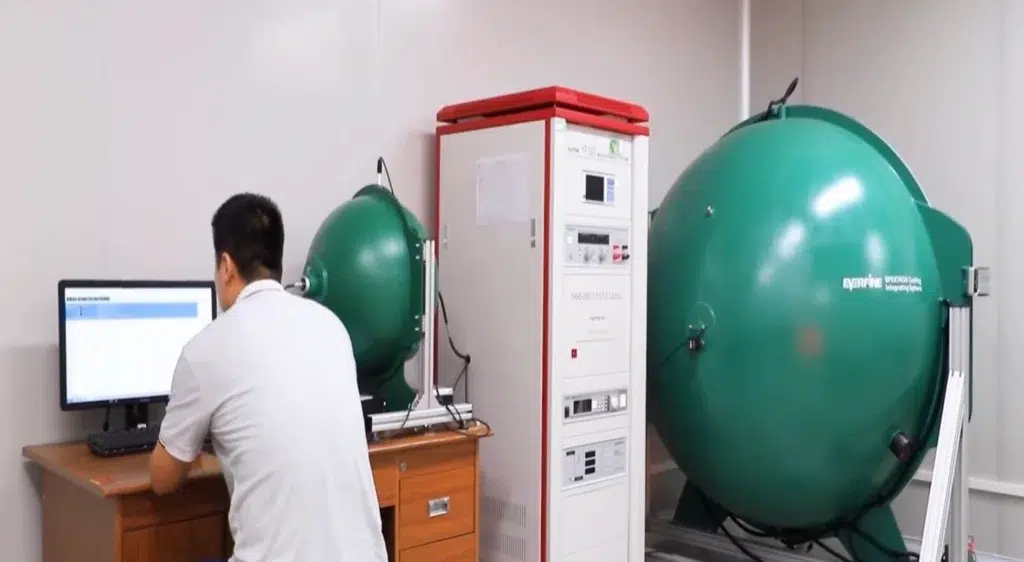

2. Optical Parameter Measurement
After final assembly and initial power-up, we use a spectrometer and lux/irradiance meter to measure the light modules. We verify that the wavelength falls within the designed target (for example red 620–670 nm or near-infrared 810–850 nm) and that the illumination/irradiance at a specified distance meets the standard. If the deviation exceeds the allowable tolerance (for example ±5 %), the unit is either reworked or scrapped. This step ensures the therapy light source meets the intended performance.
3. Functional & Electrical Safety Testing
This stage covers the evaluation of timer functionality, control switches, mode selection, as well as measuring input voltage, current, power consumption, insulation, and leakage. We test in accordance with applicable electrical safety standards (for example IEC 60601‑1 for medical electrical equipment). This step guarantees safe and reliable use in typical consumer or clinical environments.

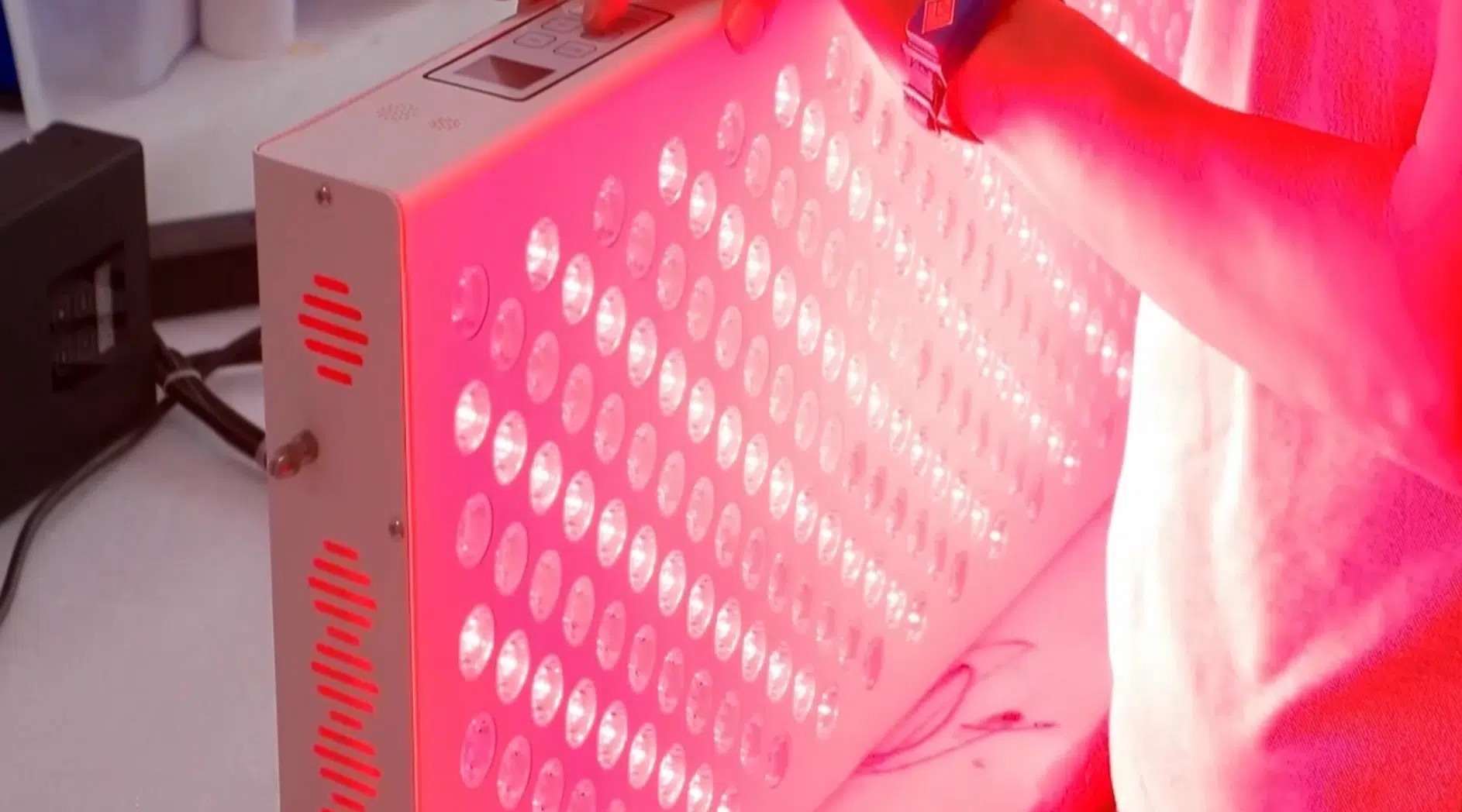

4. Temperature Rise & Stability Test
Under normal operating mode, the product is run for 30 to 60 minutes while measuring surface temperatures at key points (such as the irradiation head, outer casing, and heat sink). We confirm that the temperature rise remains within the design limit and does not pose user discomfort or safety risk. Additionally, we assess whether the output remains stable during continuous operation.
5. Environmental Adaptation & Aging Trials
To validate reliability under different environmental conditions, we subject units to simulated transport/storage conditions (for example temperature from –20 °C to +55 °C, humidity cycles, vibration, drop tests) and aging tests (such as repeated on/off cycles, continuous light-output for extended periods). This step identifies potential failure risks in advance and ensures each unit has a robust lifecycle performance.

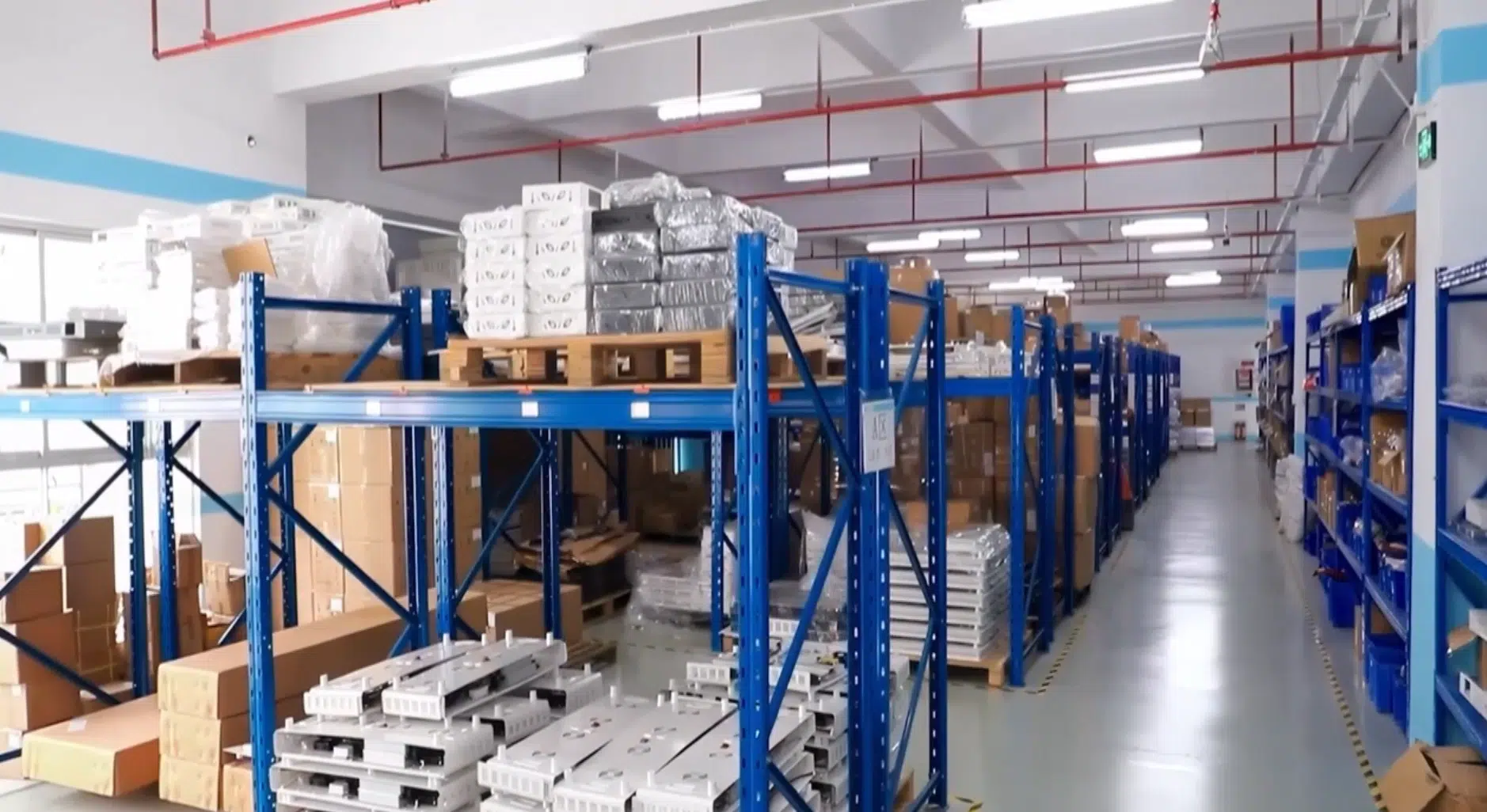

6. Final Inspection & Batch Sampling
Before shipping, our QC team performs a “final inspection” on each unit — covering all key items above (visual, optical, electrical, functional, temperature). Each passed unit receives a certificate/label of conformity. Simultaneously, for each production batch we also carry out random sampling of several units for full‐indicator retests, thereby monitoring production consistency and quality control across batches.
Our Certificates
Our products are certified by FSC, FCC, CE, and RoHS, complying with global safety certifications and quality standards.
